Application industry scenarios:

Electronics industry: computer CPU radiator, LED cooling substrate cutting.

Automobile manufacturing: engine radiator, air-conditioning aluminum pipe processing.

Industrial equipment: air compressor cooling assembly, railway locomotive radiator cutting.

Radiator Profile Cutting Machine Features

Excellent quality of the cutting surface:

by optimizing the material, tooth number and cutting parameters of the saw blade, the cutting surface can be smooth and smooth, without obvious burrs, edge collapse and other defects, reduce the subsequent processing process, and help to improve the product quality.

Stable feeding:

Both feeding and blade advancement use imported square linear guides and lead screws to ensure stability during cutting. A self-developed lift-type air-floating feeding device is used to ensure machining accuracy and prevent material surface scratches.

Environmental cleanliness:

Dual suction dust collection combined with an enclosed protective cover makes it easy to collect aluminum shavings, facilitating 7S management.

Cost savings:

The use of step-by-step lateral feed is more stable. Combined with thin saw blades, it can effectively reduce sawing costs. Equipped with a micro-lubrication device and special cutting oil for aluminum alloys can increase the service life of saw blades.

Machine details

Aluminum curtain wall processing equipment

Genuine electrical components

automatic feeding

intelligent control system

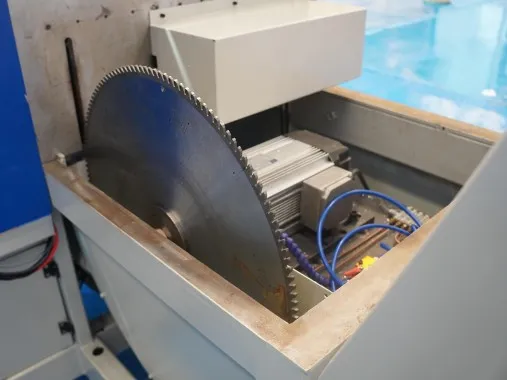

large saw 600mm

parameters

Motor power:

usually between 2kW to 7.5kW, the greater the power, the stronger the cutting capacity, can be used to cut thicker and harder aluminum profiles.

Feed speed:

generally between 1m / min to 10m / min, can be adjusted according to the aluminum material, thickness and the performance of the saw blade, to achieve the best cutting effect.

Spindle speed:

usually between 2000 r/min to 6000 r/min, for different aluminum profiles and cutting requirements, the appropriate spindle speed should be selected to ensure the cutting quality and efficiency.

apply

Usage Precautions

Installation: The machine should be in good performance and free of vibration, and the relevant components should meet the requirements. When installing, check whether the saw blade has cracks, ensure that it is firmly installed, and make sure that the cutting direction of the saw blade is consistent with the rotation direction of the saw table.

Cutting Operation: Let the saw blade pre-rotate for 1 minute before cutting. During the cutting process, reversing is prohibited, and the saw blade should not be stopped halfway through the cutting object to prevent damage to the saw blade.

Maintenance: When the saw blade becomes dull, grind it in a timely manner with an appropriate diamond grinding wheel and use coolant. Clean the saw blade after cutting, apply anti-rust oil, and hang it vertically in a dry place.
