Eight-axis Aluminum Formwork Slotting Machine

Model：LXC-3000
The numerically controlled eight-axis slot milling machine is a milling processing equipment that integrates advanced numerical control technology and multi-axis linkage function. It can perform high-precision slot milling operations on various materials to meet the processing requirements of complex workpieces.

Send Inquiry

feature

1. The clamping fixture is designed according to different shape of the workpiece. It can milling the L, U profiles height from 100 to 600mm. Non standard profiles fixture can be customized.

2. The machine can be equipped with 6, 7 or 8 individual milling heads according to requirement, the minimum distance between two milling heads is 150+/-0.1mm, each milling heads can work individually.

3. The feeding model adopt servo driving system, easy to set according to different working model.

4. The milling width is 36mm, 40mm and 42mm selectable.

Technical specification

Input Voltage	380/415V, 50Hz
Rated power	2.2x8 Kw
Max. panel length	3000mm
Milling accuracy	±0.15mm/300mm
Maximum working speed	4500mm/min
Repeat positioning accuracy	±0.10mm/300mm
Main shaft speed	9000r/min

application

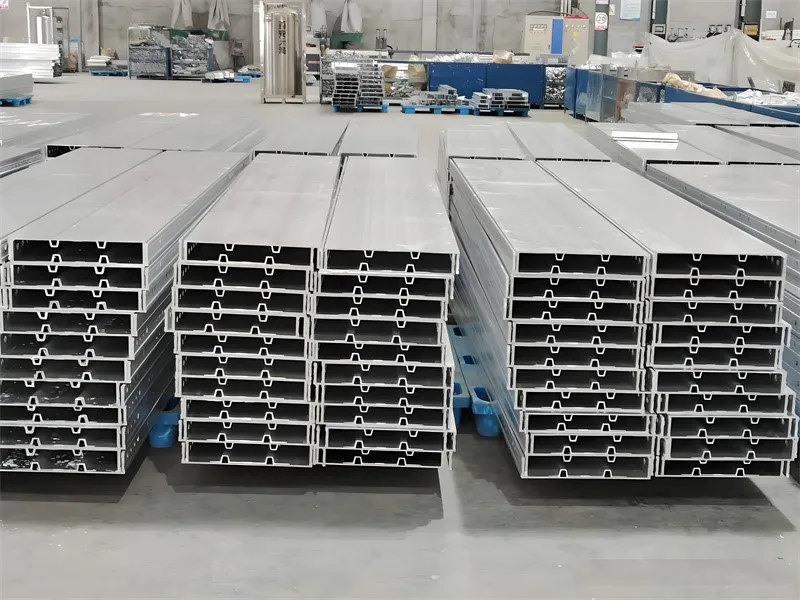

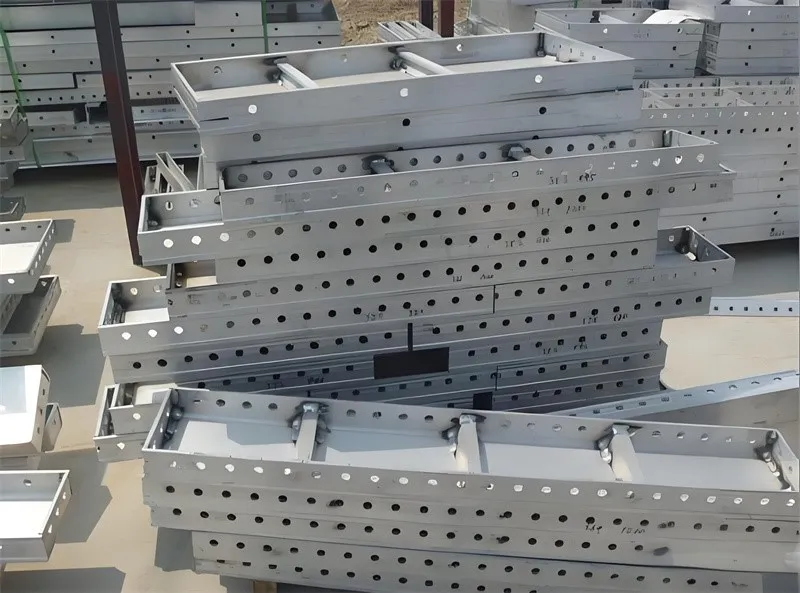

In the tie rod system of building aluminum formwork, in order to facilitate the internal sealing of the end plate, an eight-axis slot milling machine is required to mill slots on various materials. It can also be used in other fields where slot milling processing of aluminum alloy materials is required, such as the production of aluminum alloy furniture, aluminum alloy decorative materials, etc.
