Aluminum Alloy Formwork Cleaning Machine (AL-QX500)
This equipment is specialized for cleaning construction aluminum formwork, efficiently removing concrete residues, dust and oil stains on the formwork surface. Equipped with high-pressure cleaning system and adjustable nozzles, it adapts to different sizes of aluminum formwork, ensures thorough cleaning without damaging the formwork, and supports integration into production lines. It is durable, efficient and practical, an essential auxiliary equipment for aluminum formwork recycling and reuse.
Overall Advantages
- The standard running speed of the aluminum formwork cleaning line is 4–6 m/min, adjustable according to concrete adhesion on formwork surfaces.
- Cleaning water is recycled via sedimentation and filtration, realizing energy saving and emission reduction.
- Adjustable cleaning height and width adapt to aluminum formwork of various specifications.
- Conveyor length, maximum cleaning width and height can be fully customized as required.
Machine Parameters
|
Rated Pressure |
1500bar |
|
Nominal Flow Rate |
40L/min |
|
Plunger Diameter |
20mm |
|
Plunger Stroke |
120mm |
|
Pump Speed |
1450/min |
|
Motor Power |
110KW |
|
Machine Weight |
2800KG |
|
Dimensions |
3200mm × 1500mm × 1800mm |

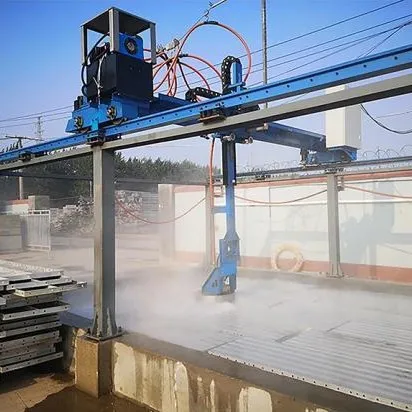

Processing Cases
