Single Head Cutting Machine with CNC Size Stopper (AL-JC600D)
This fully automatic cutting saw is professional high-efficiency equipment for aluminum formwork processing.
It achieves full automatic operation from feeding, positioning and cutting to unloading. Adopting advanced CNC system, it supports precise parameter setting and high-precision cutting for various aluminum formwork specifications.
It delivers accurate sizing with flat, smooth cutting surface. Far more efficient than traditional cutting methods, it shortens processing cycles, reduces manual errors and upgrades product quality and productivity.
Overall Advantages
- Designed for 90° straight cutting of various large extruded aluminum profiles, especially suitable for 600mm aluminum formwork profiles.
- Saw blade feed adopts linear bearing motion pair; pneumatic feed cylinder with hydraulic damping system ensures stable running and superior cutting performance.
- Compact structure with small footprint, high machining precision and long service durability.
- Specially treated worktable surface for extended service life.
- Equipped with mist spray cooling system to rapidly cool the saw blade.
- Ultra-large cutting range enables simultaneous cutting of multiple profiles in one pass.
- Fixed 90° cutting angle for straight cut processing.
- Built-in CNC positioning stop, maximum measuring length up to 3000mm, accurate positioning and easy operation.
Machine Parameters
|
Working Air Pressure |
0.5~0.8 MPa |
|
Air Consumption |
120 L/min |
|
Input Voltage |
3-Phase, 380V, 50Hz |
|
Input Power |
4.0 kW |
|
Saw Blade Diameter |
500mm or 550mm |
|
Saw Blade Rotation Speed |
2800 r/min |
|
Maximum Cutting Cross-section |
600×80mm, 450×150mm or 600×95mm, 450×175mm |
|
Cutting Angle |
90° |
|
Feeding Speed |
≤10m/min |
|
Repeat Positioning Tolerance |
±0.2mm |
|
Angle Tolerance |
< 5' |

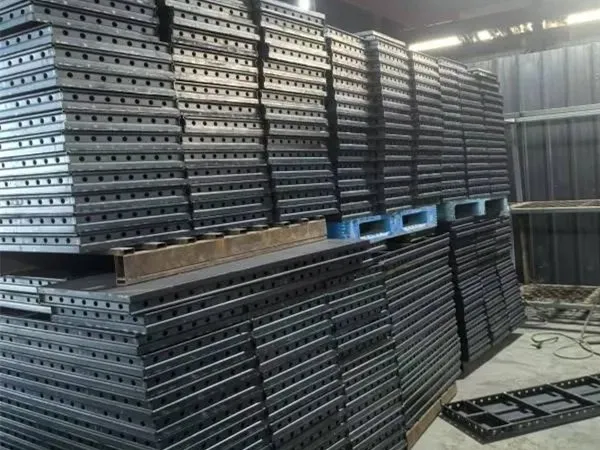

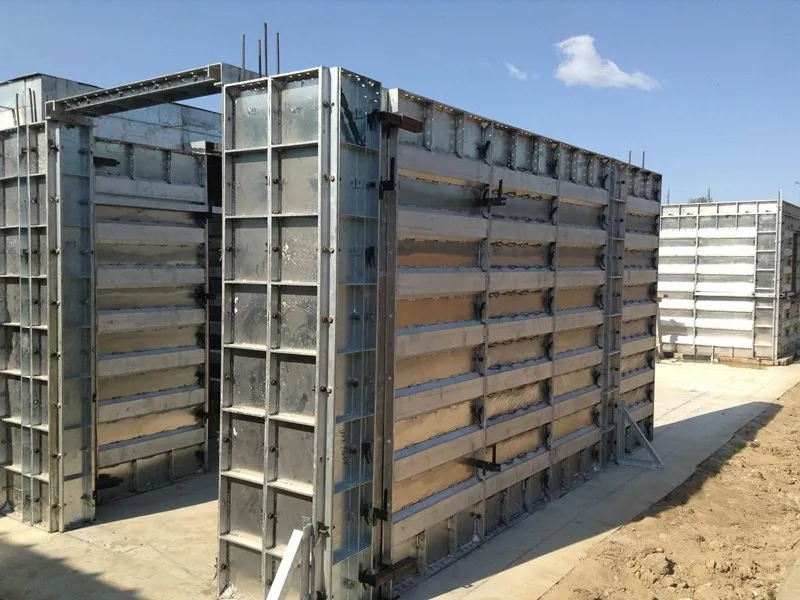

Processing Cases
