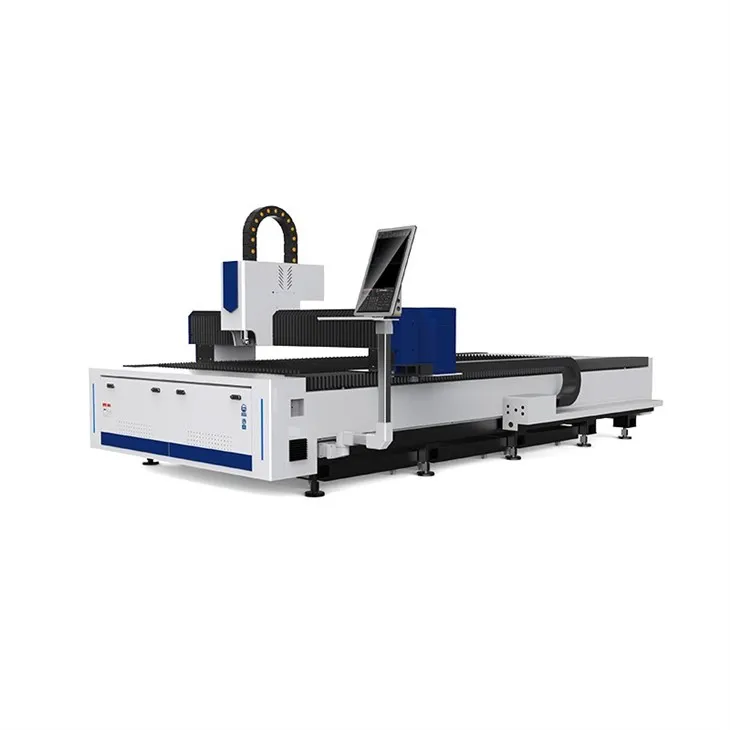

Fiber laser sheet plate cutting machine

Fiber laser cutting machine Feature: Industrial heavy-duty steel structure and CNC 5 axis machining center to ensure accuracy and stability. Imported servo drive system and imported motor reducer, fast running speed and strong stability. Taiwan guideway and high precision grinding rack are used...

Send Inquiry

Fiber laser sheet plate cutting machine Feature:

HIGH CUTTING PRECISION AND EFFICIENCY

Fiber laser technology provides a finer cutting effect with smooth edges and micron-level precision,reducing the need for post-processing.At the same time,its higher cutting speed significantly improves production efficiency.

ENERGY-EFFICIENT AND ENVIRONMENTALLY FRIENDLY

The fiber laser cutting machine uses an advanced fiber laser source with higher energy efficiency compared to

traditional laser cutting systems.It also generates less heat,reducing the impact on the surrounding environment.

WIDE MATERIAL COMPATIBILITY

This type of cutting machine can easily handle a variety of thin metal sheets,such as stainless steel,aluminum alloy, and carbon steel,and is not limited by material thickness.It is widely used in industries like automotive,aerospace, and home appliances for precision cutting needs.

Fiber laser sheet plate cutting machine Applicable materials:

Model	3015E	4020E	6020E	6025E
Working Area	3000×1500mm	4000×2000mm	6000×2000mm	6000×2500mm
X/Y Axis Repeat Position Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max Moving Speed	45m/min	45m/min	45m/min	45m/min
Max Loading Weight	600kg	800kg	1200kg	1500kg
Working Voltage	AC 380V/50Hz
System	X3S/Cypcut/Au3Tech
Cutting Head	Raytools/Au3Tech
Laser Device	Raycus/Max/Reci/IPG/BWT
Motor Drive	Leadshine/ Yaskawa
Precision Linear Guide	Hiwin
Gear Rack	YYC
Electronic Components	Schneider
Reducer System	Japan Shimpo
Pneumatic Components	Japan SMC
Water Chiller	S&A
Power Supply	1.5kw/3kw/6kw/12kw
