High Speed 4-Axis CNC Gantry Machining Center (AL-6580)
The High Speed 4-Axis CNC Gantry Machining Center is a high-efficiency 4-axis machining solution for industrial profiles. It completes milling, drilling, chamfering and tapping on three sides in one setup, ideal for high-volume production of aluminum, copper and composite profiles.
Overall Advantages
- Siemens CNC System: Equipped with German Siemens or Taiwanese CNC system for stable 4-axis control and user-friendly operation.
- High-Speed 15kW Spindle: 24000rpm spindle with imported servo motor ensures fast, precise cutting.
- High-Precision Transmission: Imported ball screws, linear guides and rack-and-pinion drive for long-term stability.
- 12-Position Tool Magazine: 6-second tool change minimizes downtime, with customizable capacity available.
- Adjustable Pneumatic Fixtures: Quick, secure clamping for various profile sizes without damaging workpieces.
- Fully Enclosed Safety Design: Multi-layer protection ensures operator safety and reduces noise/dust.
Machine Parameters
|
Machining Stroke |
|
|
X-axis Stroke |
6500mm (Customizable as required) |
|
Y-axis Stroke |
500/800mm (Customizable as required) |
|
Z-axis Stroke |
500mm (Customizable as required) |
|
A-axis Stroke |
±95° |
|
Spindle |
|
|
Spindle Speed |
24000rpm |
|
Spindle Power |
15kW |
|
X-axis Rapid Traverse Speed |
60m/min |
|
Y-axis Rapid Traverse Speed |
48m/min |
|
Z-axis Rapid Traverse Speed |
20m/min |
|
A-axis Rotation Speed |
300r/min |
|
Accuracy |
|
|
X-axis Positioning Accuracy |
±0.02mm |
|
Y/Z-axis Positioning Accuracy |
±0.01mm |
|
Repeat Positioning Accuracy |
±0.01mm |
|
Tools |
|
|
Tool Magazine Capacity |
12 Tool Stations (pcs) |
|
Tool Change Time |
6 Seconds (sec) |
|
Others |
|
|
Air Pressure Requirement |
6kg/cm² |
|
Cooling System |
Atomization Cooling / Flood Cooling |
|
Air Pressure Requirement |
6kg/cm² |
|
Option |
|
|
Tapping |
|
|
Saw Blade Function |
|
|
T-slot Worktable |
|
|
Cast Iron Machine Bed |
|

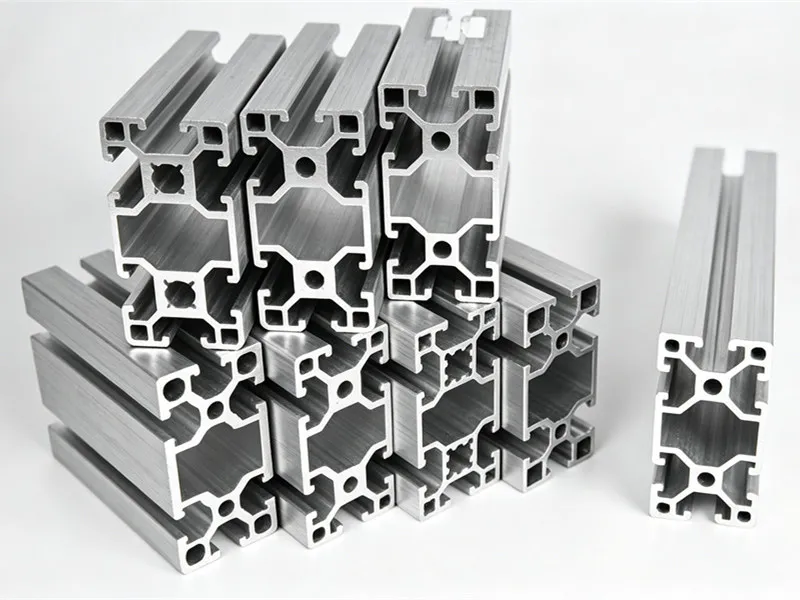

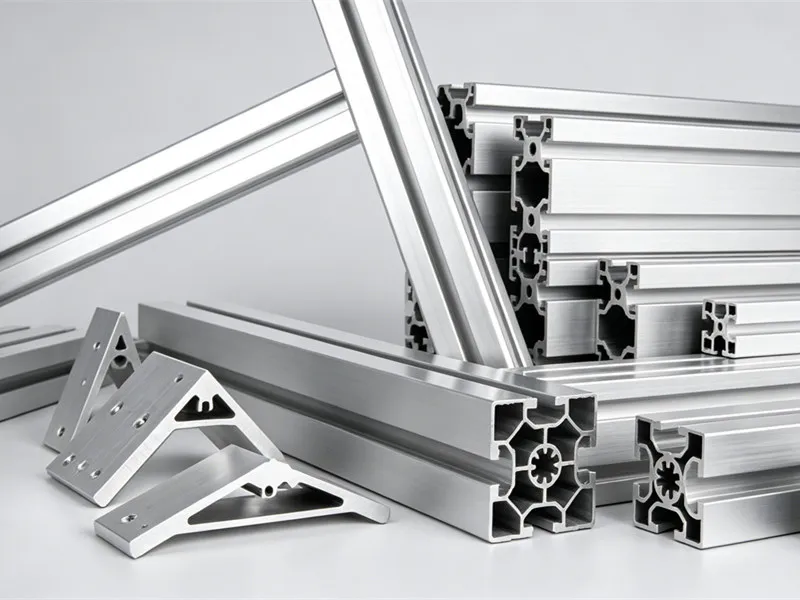

Processing Cases
