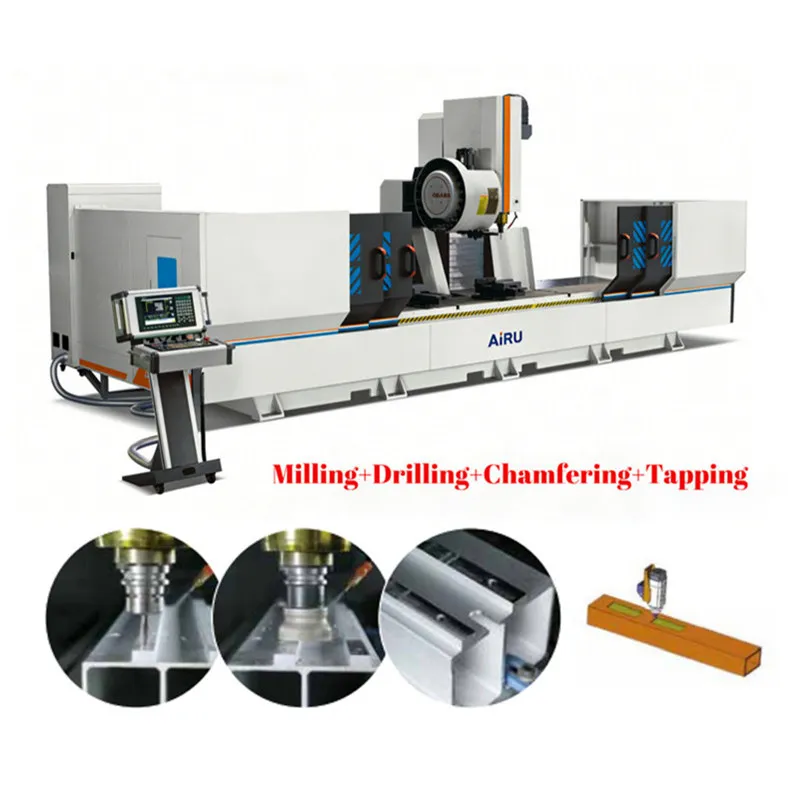

Industrial Aluminum Profile Heavy-Duty 3-Axis CNC Machining Center (AL-4500B)
The AL-4500B specializes in processing oversized, heavy aluminum extrusions. Constructed with a thick welded frame and high-output spindle, it maintains steady cutting precision even when working with thick aluminum sections.
Operators can finish full milling, drilling, chamfering and tapping without re-clamping workpieces. Less manual handling cuts down cycle times and lifts overall shop throughput without sacrificing dimensional accuracy.
Made to run nonstop on production floors, this unit holds consistent performance during extended shifts. It serves as a practical machining option for rail transit parts, architectural curtain wall production and other heavy industrial manufacturing needs.
Overall Advantages
-
CNC Control System: Users can select Siemens or Taiwanese control systems for smooth operation and reliable long-term running.
-
Heavy-Duty Spindle: Available in 7.5kW and 11kW power variants, hitting 12000rpm to generate ample cutting force for thick aluminum extrusions.
-
24-Position Tool Changer: Tool swap only takes 2 seconds, cutting downtime to sustain uninterrupted mass production.
-
Cast Iron T-Slot Worktable: Clamps large, weighty profiles tightly to avoid shifting under high-torque cutting loads.
-
Automatic Chip Conveyor: Built-in scrap removal mechanism clears chips automatically, perfect for extended unattended machining runs.
Machine Parameters
|
Machining Stroke |
|
|
X-axis Stroke |
3000/4500/6000mm (Customizable as required) |
|
Y-axis Stroke |
550/700mm (Customizable as required) |
|
Z-axis Stroke |
500mm |
|
Spindle |
|
|
Spindle Speed |
12000rpm |
|
Spindle Taper |
BT40/BT50 (Customizable as required) |
|
X-axis Rapid Traverse Speed |
45m/min |
|
Y-axis Rapid Traverse Speed |
25m/min |
|
Z-axis Rapid Traverse Speed |
25m/min |
|
Spindle Power |
7.5/11kW |
|
Z/X/Y-axis Motor Power |
3.0/4.7/3.0kW |
|
Accuracy |
|
|
X-axis Positioning Accuracy |
±0.02mm |
|
Y/Z-axis Positioning Accuracy |
±0.01mm |
|
Repeat Positioning Accuracy |
±0.01mm |
|
Tools |
|
|
Tool Change Method |
Fast Synchronous Tool Change |
|
Pull Stud Type |
45° |
|
Tool Magazine Capacity |
24 Tool Stations (pcs) |
|
Tool Change Time |
2 Seconds (sec) |
|
Others |
|
|
Lubrication System |
Grease Lubrication |
|
Cooling System |
Atomization Cooling / Flood Cooling |
|
Height |
2500mm |
|
Air Pressure Requirement |
6kg/cm² |
|
Floor Space |
8500-16500*3800mm |
|
Machine Weight |
14000-25000kg |

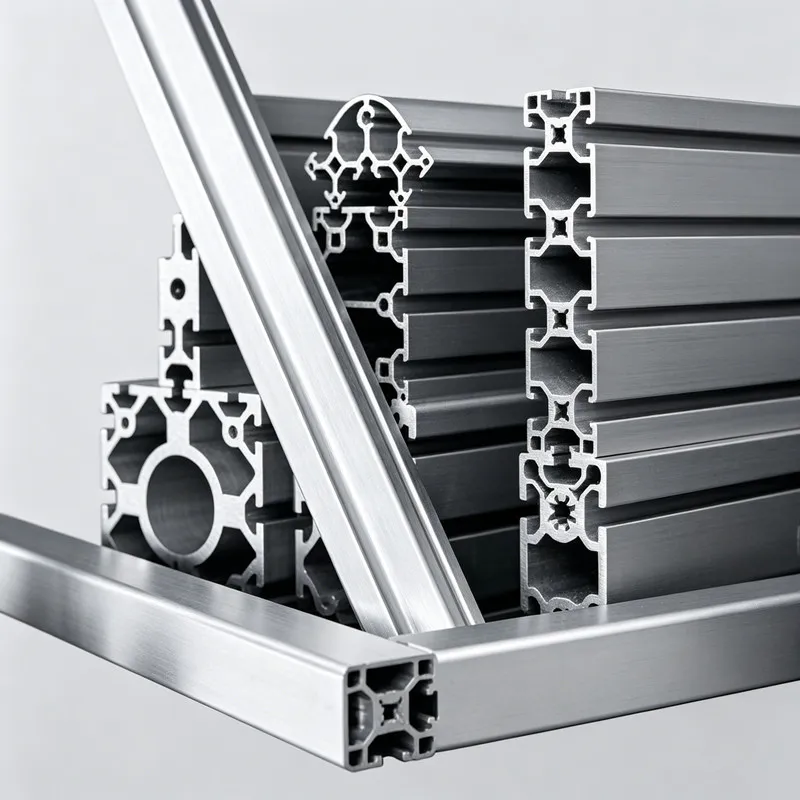

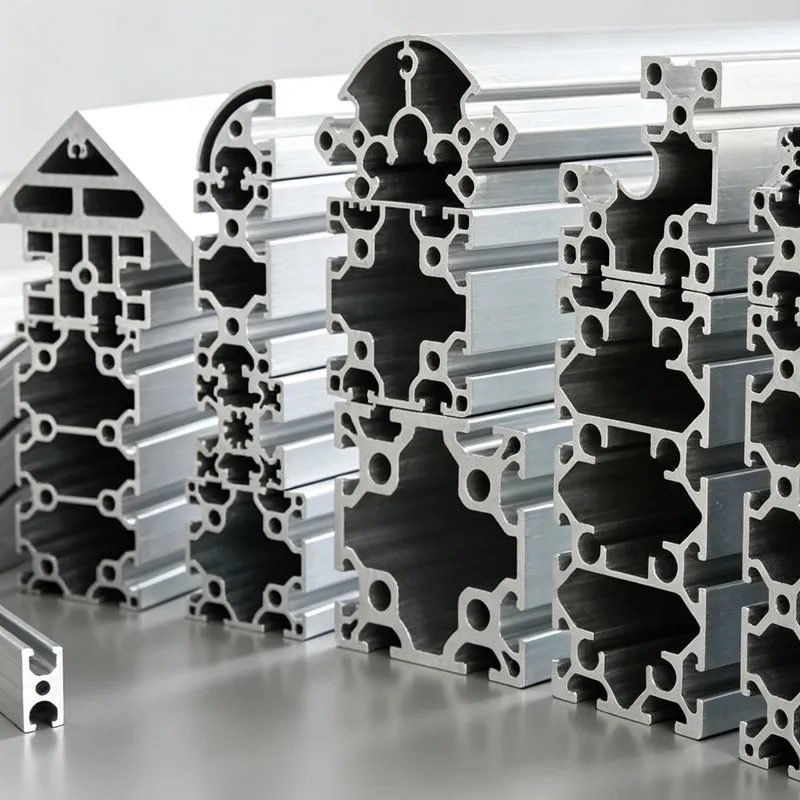

Processing Cases
