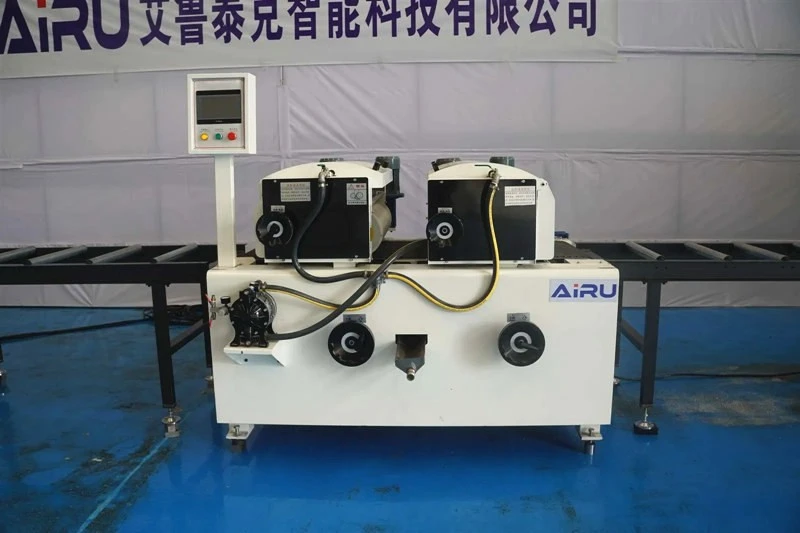

Aluminium Formwork Lacquering & Drying Machine (AL-620#)
This automatic oil coating machine features a sturdy steel structure and stable drive system for reliable long-term use. It integrates feeding, positioning, coating and conveying, delivering uniform, adjustable oil film without dripping or leakage. Adaptable to common aluminum formwork profiles, it is simple to operate, highly efficient and labor-saving, ideal for improving formwork rust resistance and service life.
Overall Advantages
- The full line includes aluminum formwork panel loading station, two sets of roller coaters, conveyors, UV drying section, and unloading conveyor - ideal for high-quality mass production.
- Coating thickness is digitally displayed and adjustable via rollers; roller coating technology reduces material consumption.
- A circulation pump returns excess coating to the rollers for material savings.
- The UV drying section uses 4 UV lamps for fast curing, boosting line speed and eliminating excess hardener.
- Each UV lamp has an independent controller, enabling easy adjustment based on line speed and ambient temperature.
- This integrated coating & drying line features high speed, low labor input and low production cost.
Machine Parameters
|
Machine |
Roller Coater machine |
Dryer machine |
|
Input Voltage |
3-Phase 380/415V, 50Hz |
3-Phase 380/415V, 50Hz |
|
Rated Power |
3.75kW |
14.2kW (4 UV Lamps) |
|
Working Speed |
5-18m/min |
6~11.6m/min |
|
Air Pressure |
0.5-0.8MPa |
- |
|
Roller Shafts |
2×D120mm, 2×D100mm |
- |
|
Workpiece Height |
50~80mm |
50~120mm |
|
Workpiece Width |
150~600mm |
150-600mm |
|
Dimensions (Excluding Conveyor) |
2200×2000×1600mm |
3000×900×1700mm |
Processing Cases
