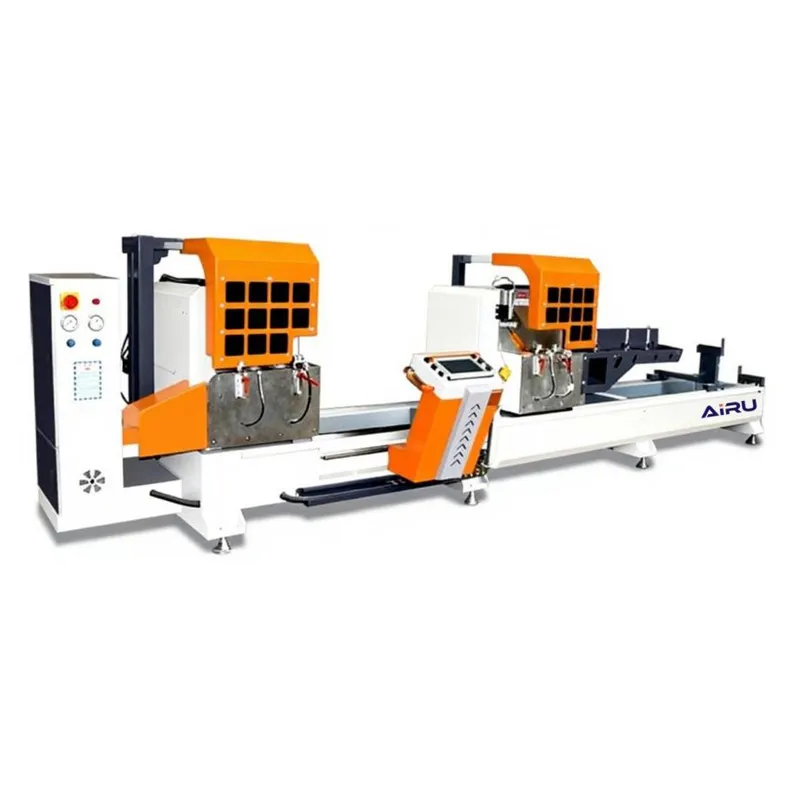

CNC Precision 45° Cutting Saw for Aluminum Profiles (AL-LJZ2-550)
Designed for cutting and blanking of aluminum curtain wall and aluminum-plastic door & window profiles.
Equipped with carbide saw blades for high speed and high precision. Dual saw heads can work simultaneously or independently, only for 45° cutting.
Rear-to-front saw blade movement ensures safe, stable cutting with larger cutting width.
CNC or digital display version optional, ideal for mass high-precision production of aluminum door, window and curtain wall profiles.
Overall Advantages
- This machine is specially designed for cutting and blanking of aluminum alloy curtain wall profiles and aluminum-plastic door and window profiles.
- Fitted with carbide saw blades, it delivers high linear speed and precise machining. The double saw heads can operate either synchronously or independently, dedicated exclusively to 45° angle cutting.
- With a rear-forward saw blade moving structure, it ensures safer, more stable cutting and supports a wider cutting range.
- CNC or digital display configuration is optional to meet mass production and high-precision processing demands for aluminum doors, windows and curtain wall profiles.
Machine Parameters
|
Input Power Supply |
380V 50Hz |
|
Input Power |
7.0Kw |
|
Working Air Pressure |
0.5-0.8Mpa |
|
Saw Blade Speed |
2800r/min |
|
Saw Blade Specification |
D=550mm, d=30mm |
|
Cutting Length |
480 - 4200mm |
|
Cutting Angle |
45° |
|
Overall Dimensions |
5800×1750×1800mm |

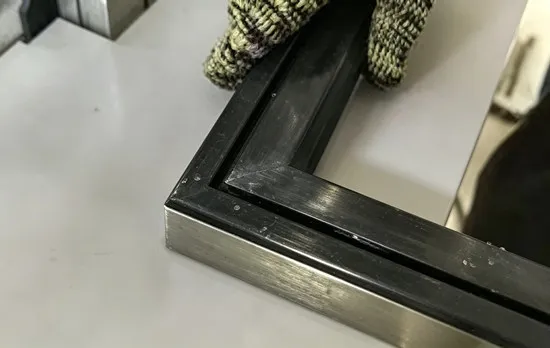

Processing Cases
