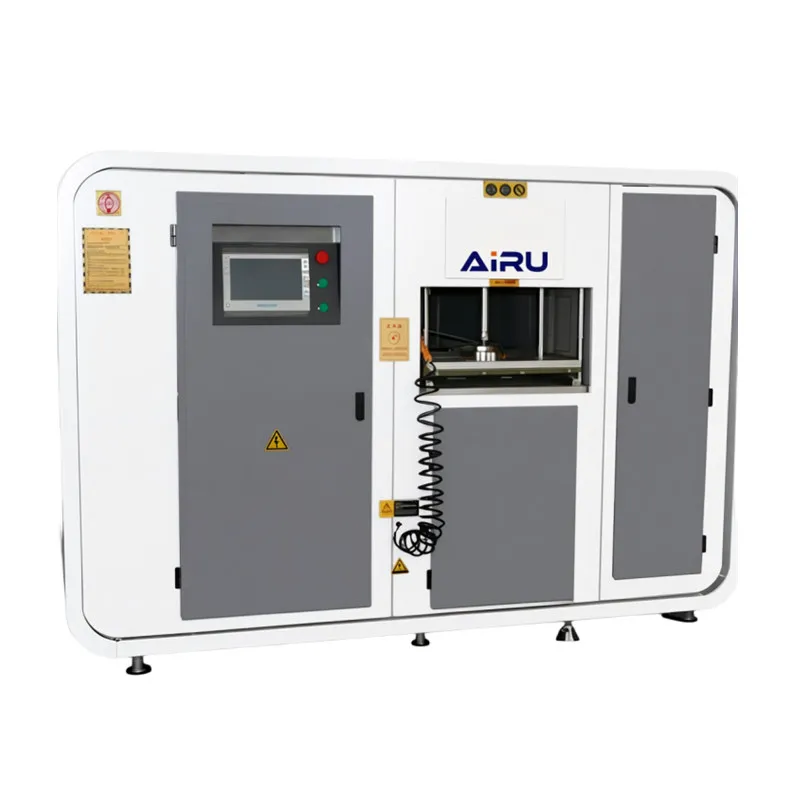

CNC End-milling Machine for Aluminum Profile (Casting Integrated) (AL-LXDB-CNC-500S)
The End Milling Machine is a high-efficiency, heavy-duty machine specially designed for aluminum profile processing in the door and window industry. It is used for milling the tenon joints, lap joints and step faces of mullions and transoms, ensuring tight assembly between profiles.
Overall Advantages
- Designed for high-efficiency sawing of aluminum door and window profiles, it can perform 45° or 90° cutting on profiles.
- Used for end milling of aluminum profiles, it can mill multiple profiles in one pass with high efficiency.
- The tools can be adjusted up/down and left/right to adapt to processing of different shapes and sizes. The adjustable tools eliminate the need for custom tooling when processing different profiles, thus shortening the production preparation cycle and reducing costs.
- The large tool diameter ensures high cutting speed and excellent surface finish.
- A motor phase sequence protector is installed in the circuit system, improving system safety.
- The feed system adopts a servo feed device, ensuring stable and reliable operation.
Machine Parameters
|
Input Power Supply |
380V 50Hz |
|
Input Power |
4.4kW |
|
Working Air Pressure |
0.5~0.8MPa |
|
Air Consumption |
150 L/min |
|
Motor Speed |
2800r/min |
|
Spindle Diameter |
Φ32 mm |
|
Milling Cutter Diameter |
Φ250mm |
|
Overall Dimensions |
2500×1700×2000mm |
